A Dependently Typed Assembly Language

  • (Joint work with Robert Harper)

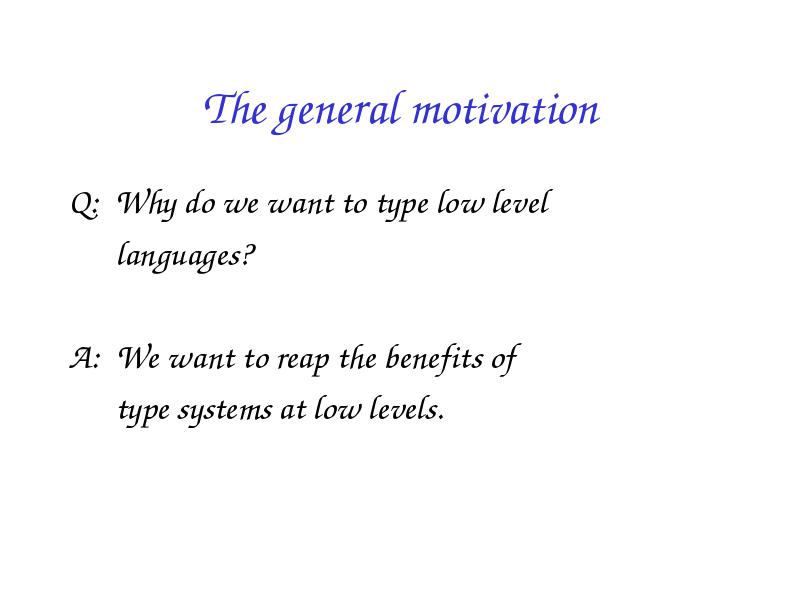

The general motivation

  • Q: Why do we want to type low level

  • languages?

  • A: We want to reap the benefits of

  • type systems at low levels.

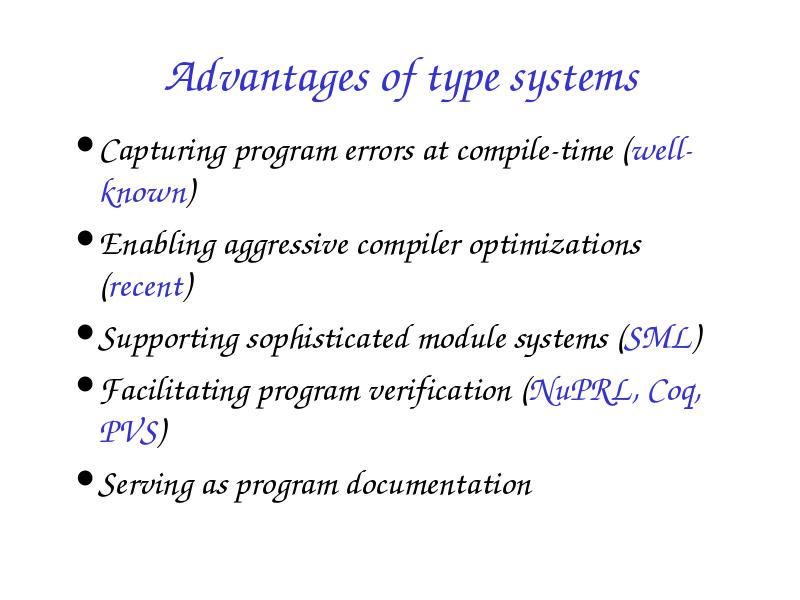

Advantages of type systems

  • Capturing program errors at compile-time (well-known)

  • Enabling aggressive compiler optimizations (recent)

  • Supporting sophisticated module systems (SML)

  • Facilitating program verification (NuPRL, Coq, PVS)

  • Serving as program documentation



The goal of this work

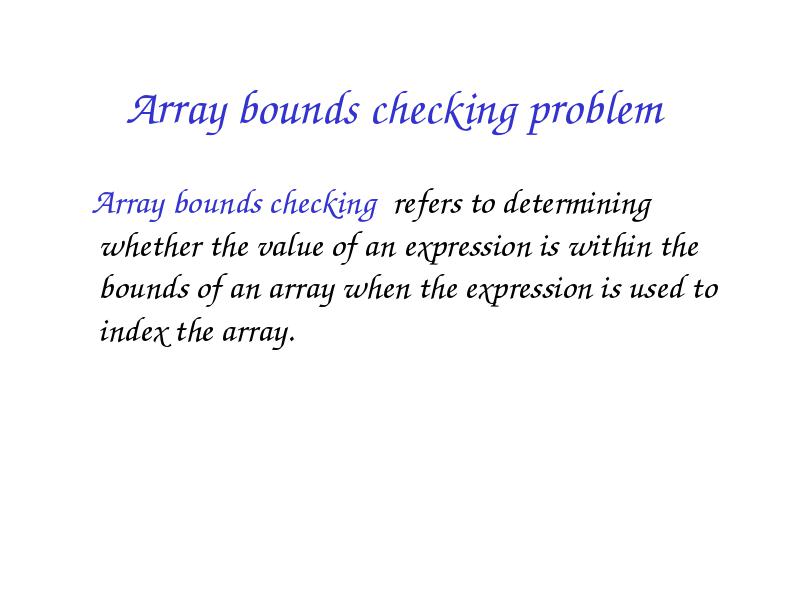

Array bounds checking problem

  • Array bounds checking refers to determining whether the value of an expression is within the bounds of an array when the expression is used to index the array.



Byte copy: A version in C

  • void

  • bcopy(int src[], int dst[]) {

  • int i;

  • if (length(src) != length(dst) {

  • printf “bcopy: unequal lengths\n”;

  • exit(1);

  • }

  • for(i=1; i < length(src), i++)

  • dst[i] = src[i];

  • }

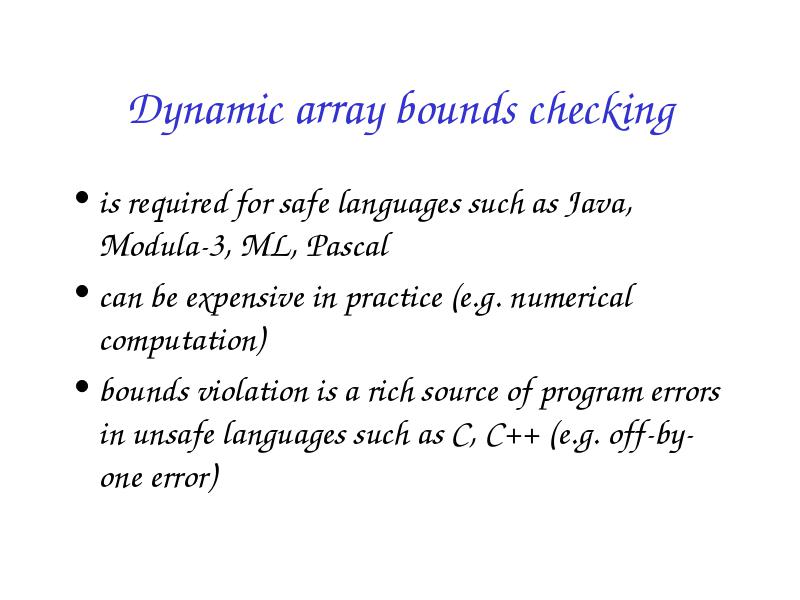

Dynamic array bounds checking

  • is required for safe languages such as Java, Modula-3, ML, Pascal

  • can be expensive in practice (e.g. numerical computation)

  • bounds violation is a rich source of program errors in unsafe languages such as C, C++ (e.g. off-by-one error)



Some experimental results

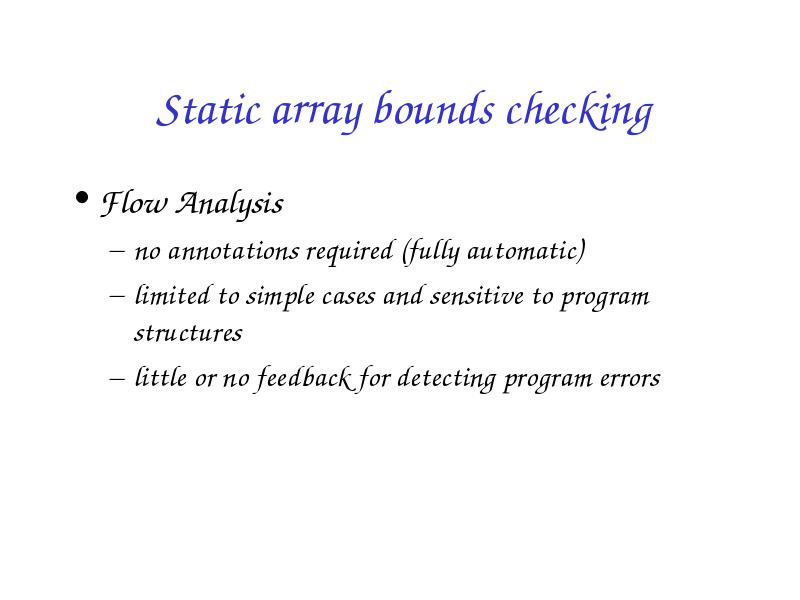

Static array bounds checking

  • Flow Analysis

    • no annotations required (fully automatic)
    • limited to simple cases and sensitive to program structures
    • little or no feedback for detecting program errors

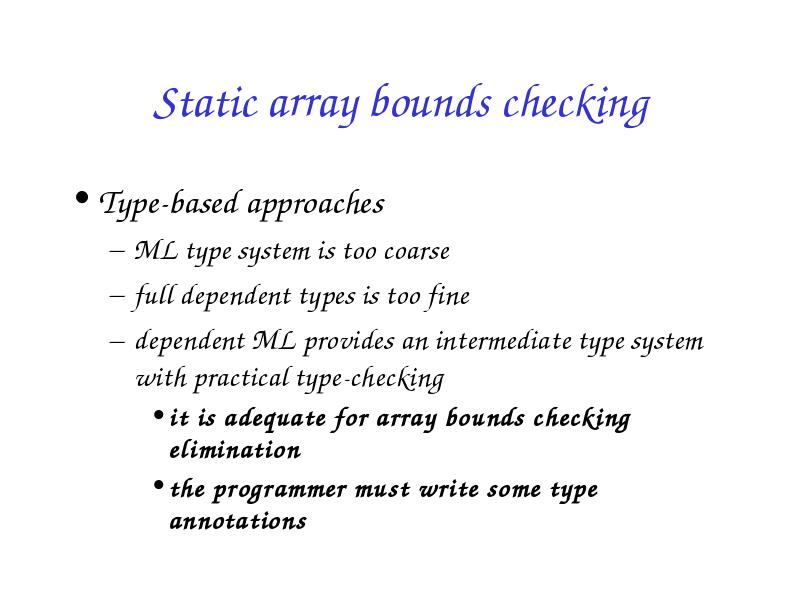

Static array bounds checking

  • Type-based approaches

    • ML type system is too coarse
    • full dependent types is too fine
    • dependent ML provides an intermediate type system with practical type-checking
      • it is adequate for array bounds checking elimination
      • the programmer must write some type annotations

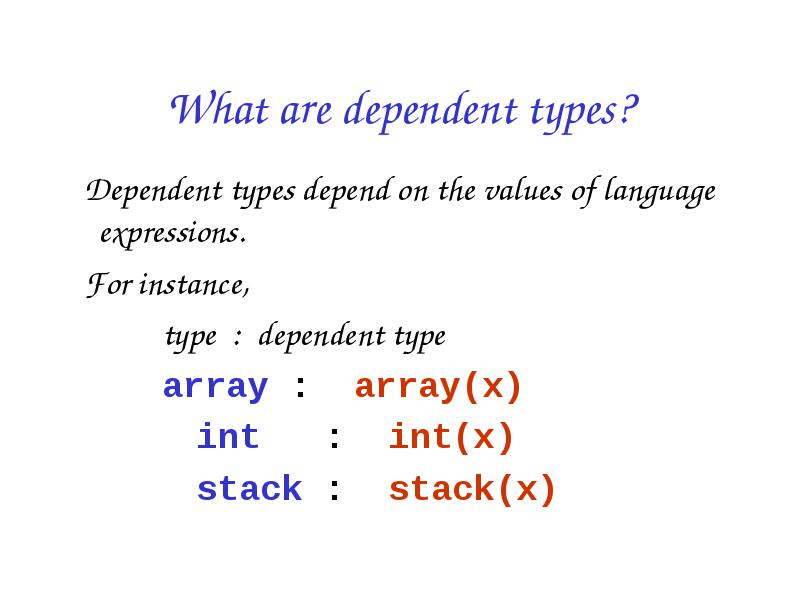

What are dependent types?

  • Dependent types depend on the values of language expressions.

  • For instance,

  • type : dependent type

  • array : array(x)

  • int : int(x)

  • stack : stack(x)

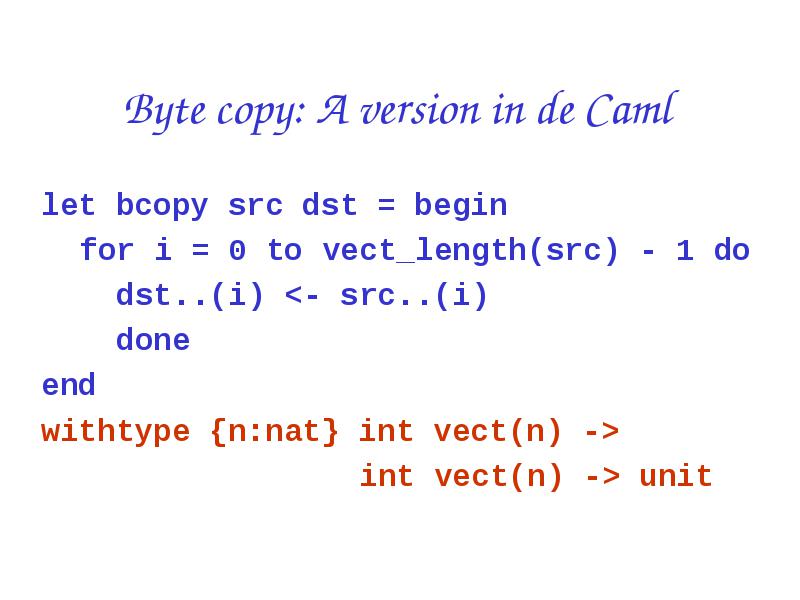

Byte copy: A version in de Caml

  • let bcopy src dst = begin

  • for i = 0 to vect_length(src) - 1 do

  • dst..(i) <- src..(i)

  • done

  • end

  • withtype {n:nat} int vect(n) ->

  • int vect(n) -> unit

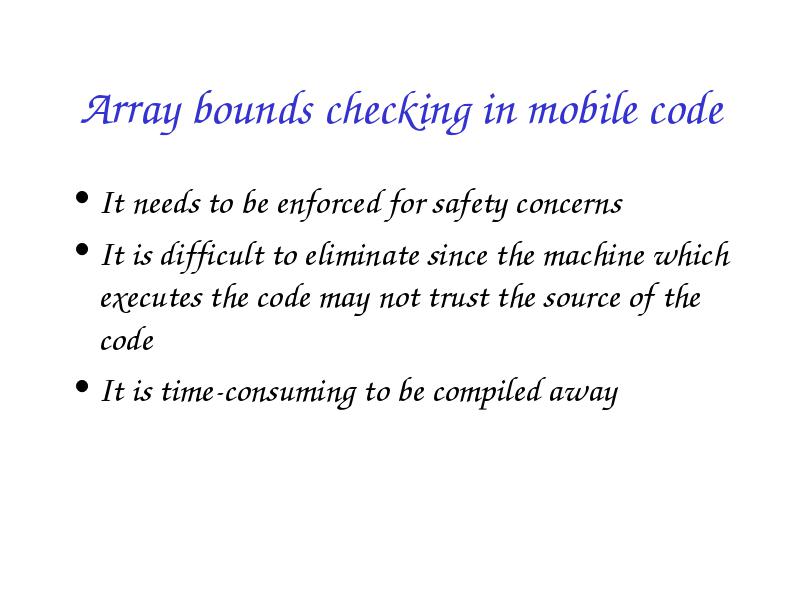

Array bounds checking in mobile code

  • It needs to be enforced for safety concerns

  • It is difficult to eliminate since the machine which executes the code may not trust the source of the code

  • It is time-consuming to be compiled away

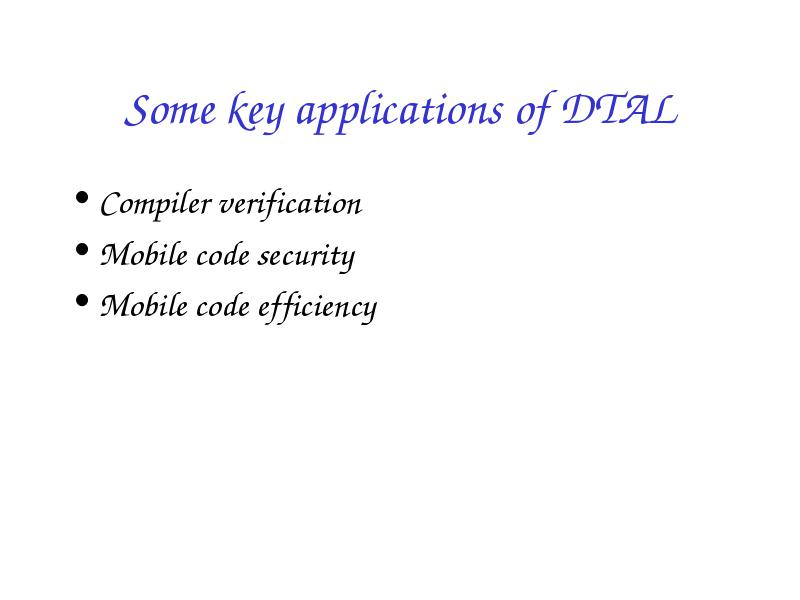

Some key applications of DTAL

  • Compiler verification

  • Mobile code security

  • Mobile code efficiency

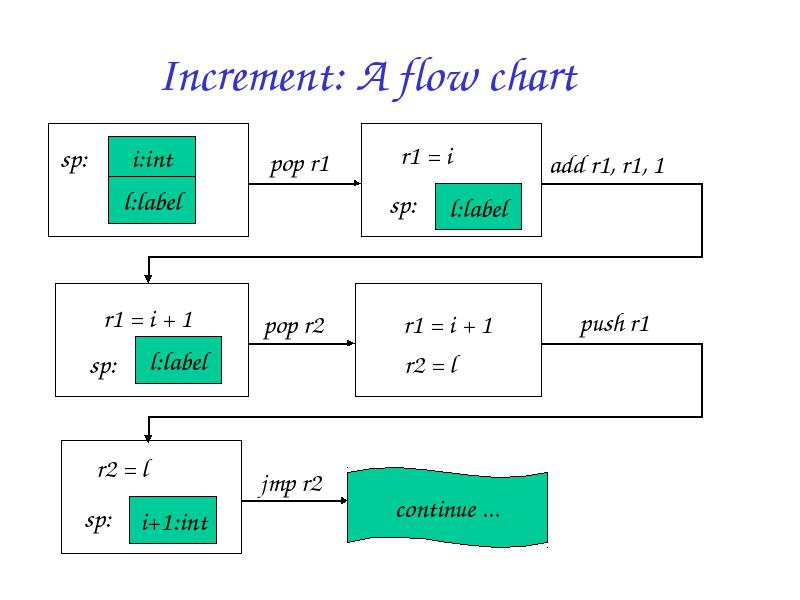

Increment: A flow chart

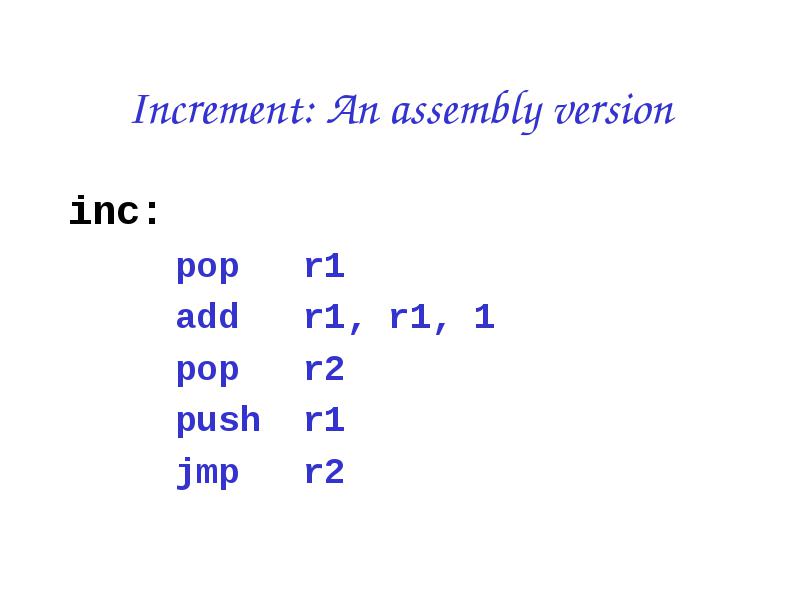

Increment: An assembly version

  • inc:

  • pop r1

  • add r1, r1, 1

  • pop r2

  • push r1

  • jmp r2

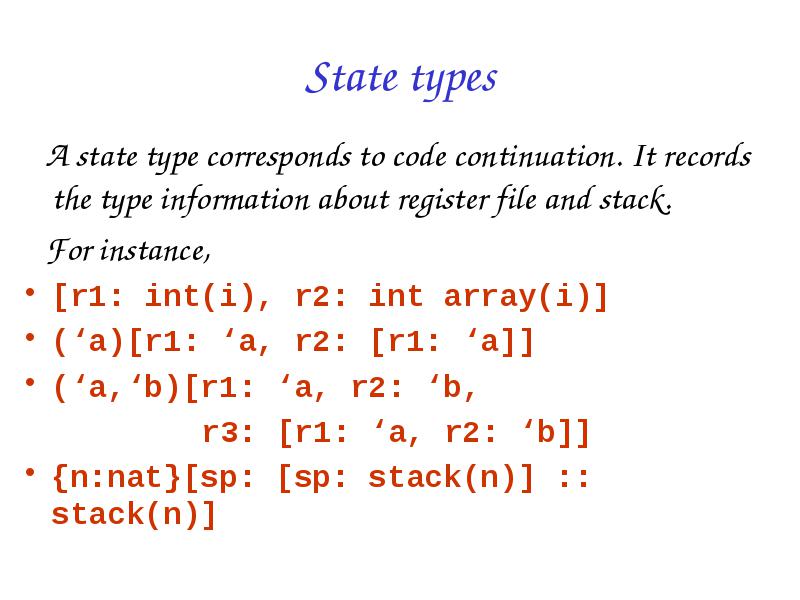

State types

  • A state type corresponds to code continuation. It records the type information about register file and stack.

  • For instance,

  • [r1: int(i), r2: int array(i)]

  • (‘a)[r1: ‘a, r2: [r1: ‘a]]

  • (‘a,‘b)[r1: ‘a, r2: ‘b,

  • r3: [r1: ‘a, r2: ‘b]]

  • {n:nat}[sp: [sp: stack(n)] :: stack(n)]

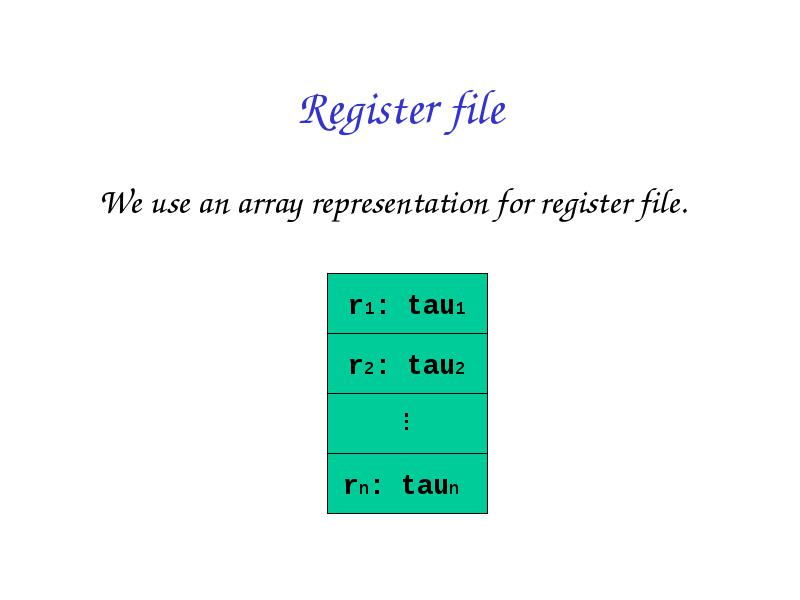

Register file

  • We use an array representation for register file.



Stack

  • We use a list representation for stack.

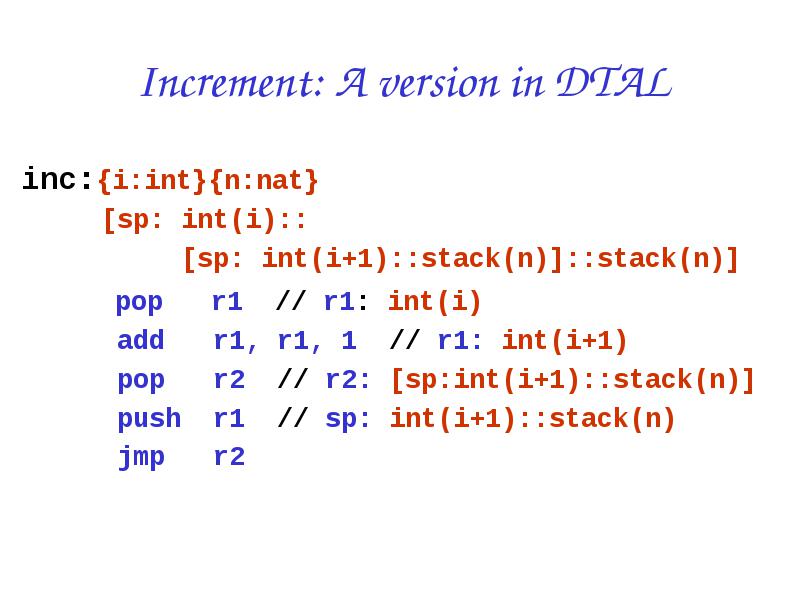

Increment: A version in DTAL

  • inc:{i:int}{n:nat}

  • [sp: int(i)::

  • [sp: int(i+1)::stack(n)]::stack(n)]

  • pop r1 // r1: int(i)

  • add r1, r1, 1 // r1: int(i+1)

  • pop r2 // r2: [sp:int(i+1)::stack(n)]

  • push r1 // sp: int(i+1)::stack(n)

  • jmp r2

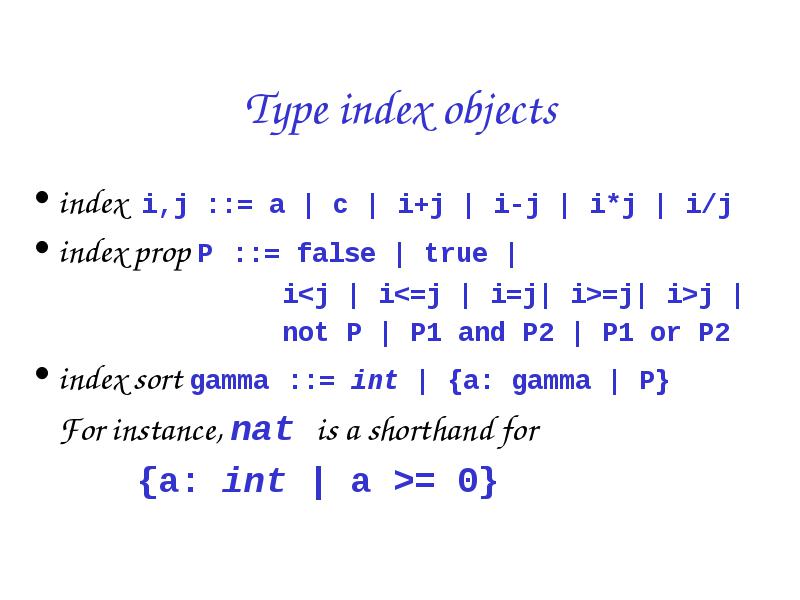

Type index objects

  • index i,j ::= a | c | i+j | i-j | i*j | i/j

  • index prop P ::= false | true |

  • i=j| i>j |

  • not P | P1 and P2 | P1 or P2

  • index sort gamma ::= int | {a: gamma | P}

  • For instance, nat is a shorthand for

  • {a: int | a >= 0}

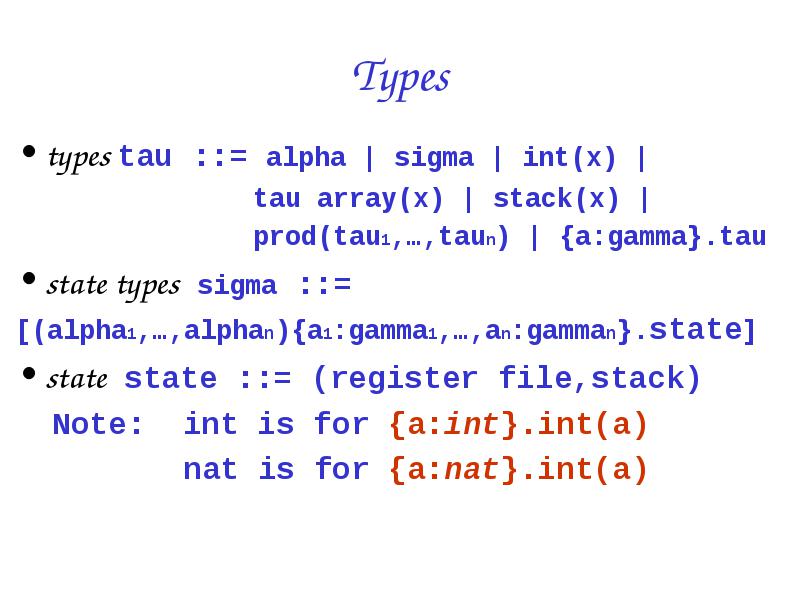

Types

  • types tau ::= alpha | sigma | int(x) |

  • tau array(x) | stack(x) |

  • prod(tau1,…,taun) | {a:gamma}.tau

  • state types sigma ::=

  • [(alpha1,…,alphan){a1:gamma1,…,an:gamman}.state]

  • state state ::= (register file,stack)

  • Note: int is for {a:int}.int(a)

  • nat is for {a:nat}.int(a)

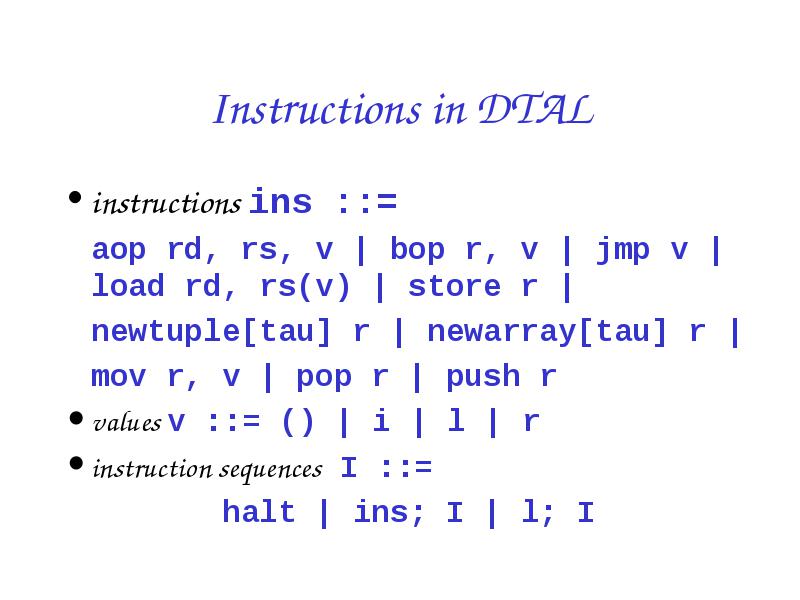

Instructions in DTAL

  • instructions ins ::=

  • aop rd, rs, v | bop r, v | jmp v | load rd, rs(v) | store r |

  • newtuple[tau] r | newarray[tau] r |

  • mov r, v | pop r | push r

  • values v ::= () | i | l | r

  • instruction sequences I ::=

  • halt | ins; I | l; I

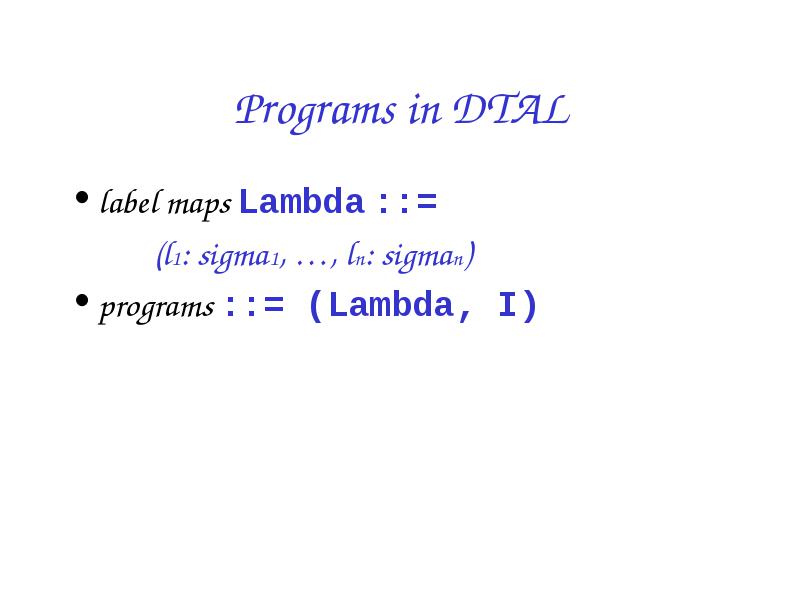

Programs in DTAL

  • label maps Lambda ::=

  • (l1: sigma1, …, ln: sigman)

  • programs ::= (Lambda, I)

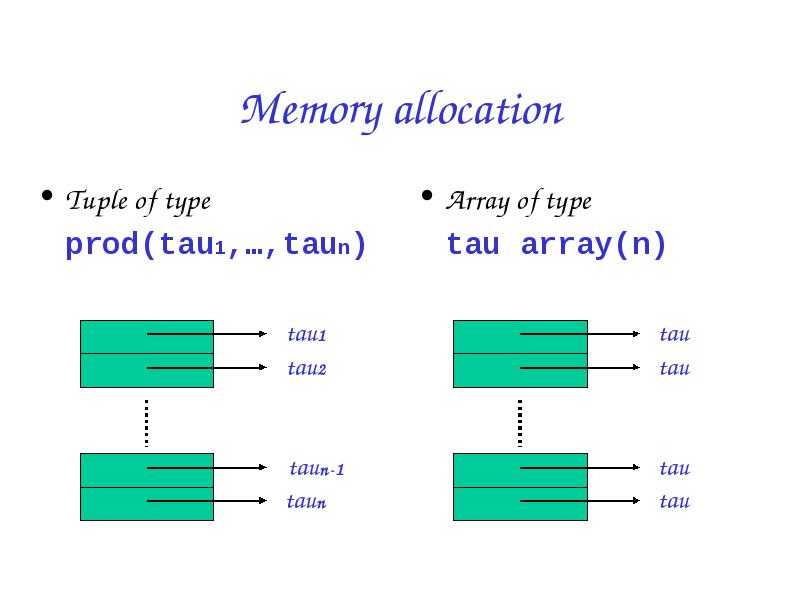

Memory allocation

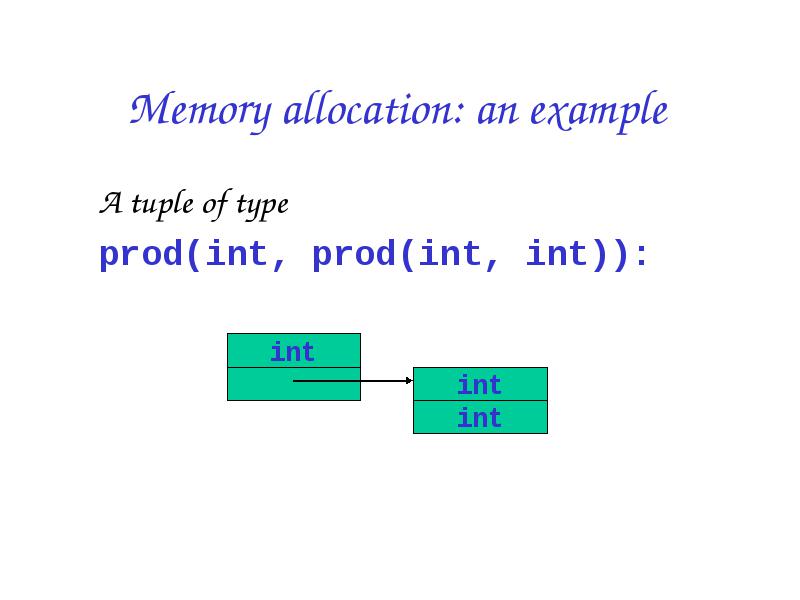

Memory allocation: an example

  • A tuple of type

  • prod(int, prod(int, int)):

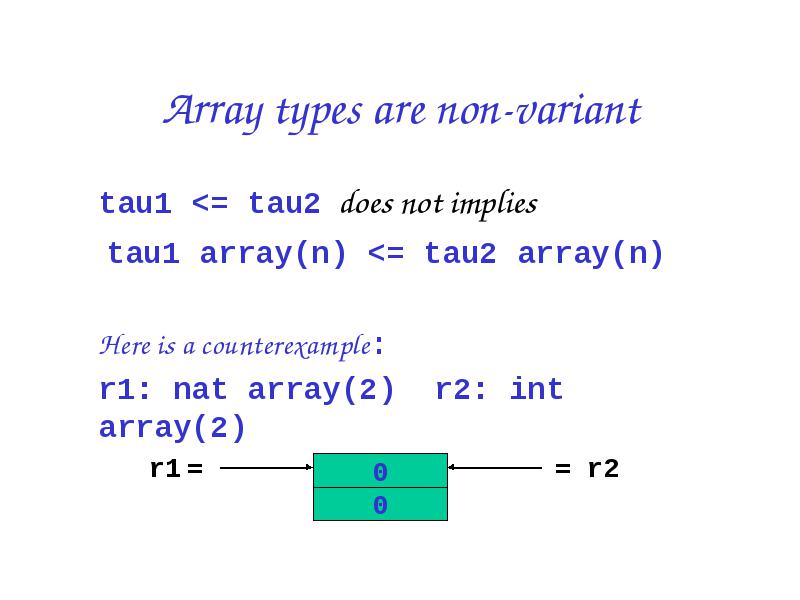

Array types are non-variant

  • tau1 <= tau2 does not implies

  • tau1 array(n) <= tau2 array(n)

  • Here is a counterexample:

  • r1: nat array(2) r2: int array(2)

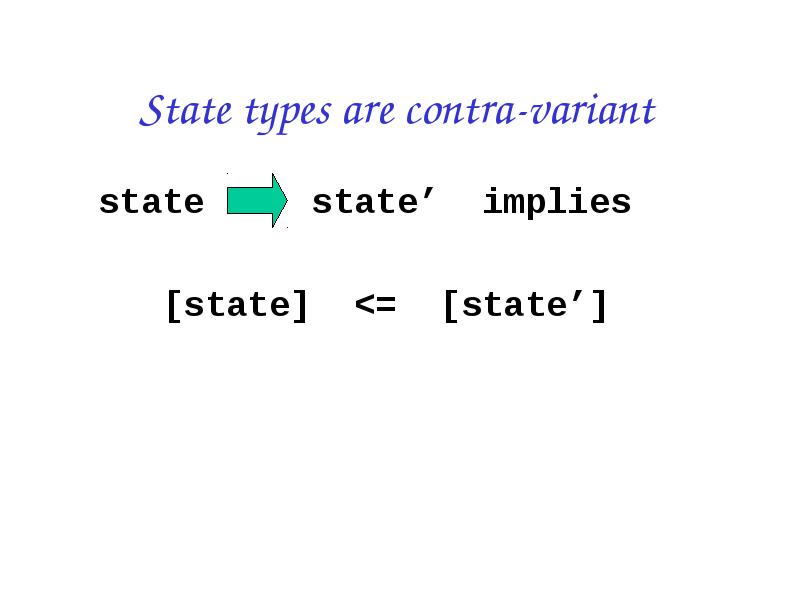

State types are contra-variant

  • state state’ implies

  • [state] <= [state’]

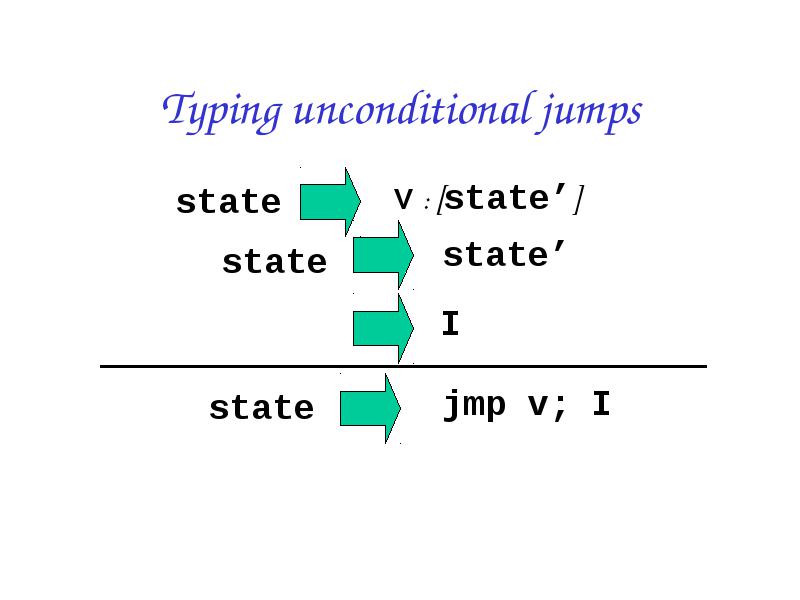

Typing unconditional jumps

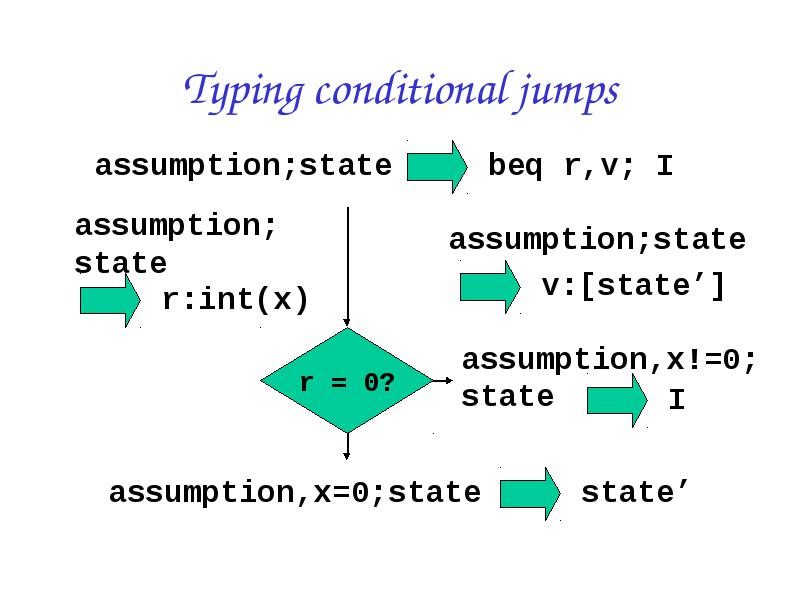

Typing conditional jumps

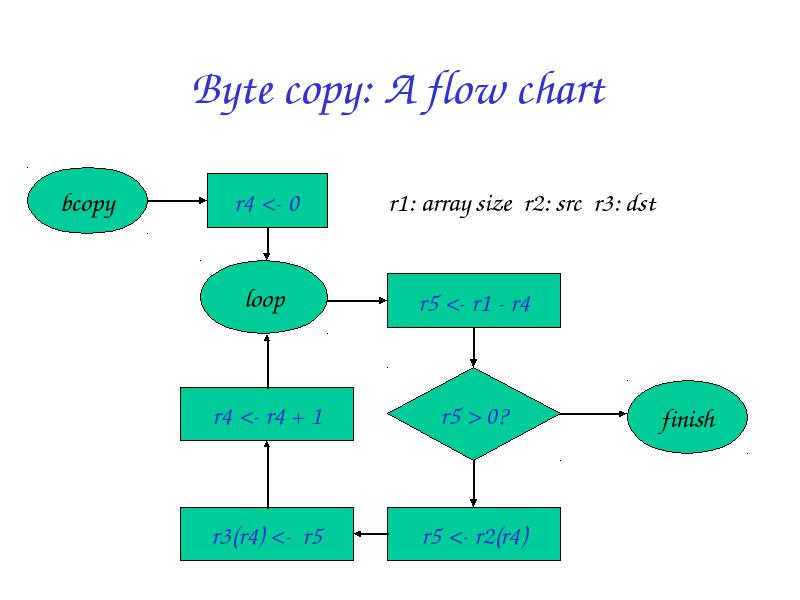

Byte copy: A flow chart

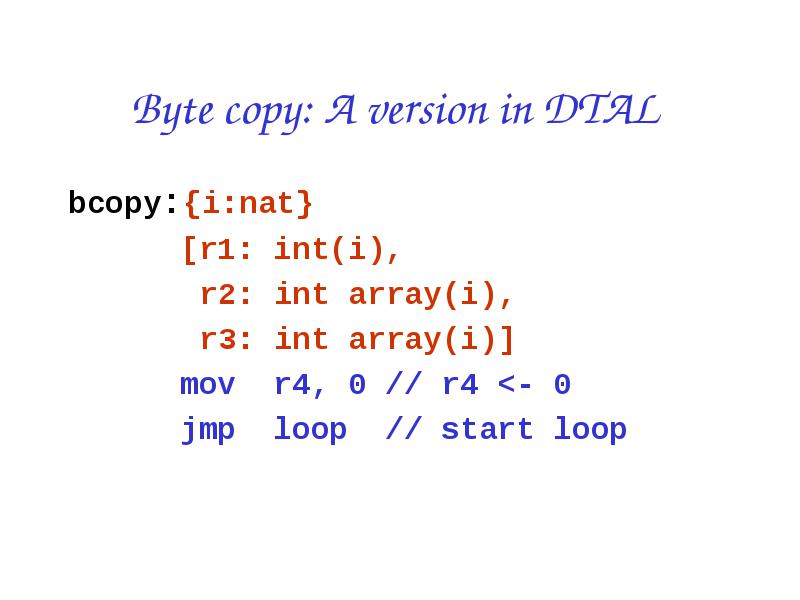

Byte copy: A version in DTAL

  • bcopy:{i:nat}

  • [r1: int(i),

  • r2: int array(i),

  • r3: int array(i)]

  • mov r4, 0 // r4 <- 0

  • jmp loop // start loop

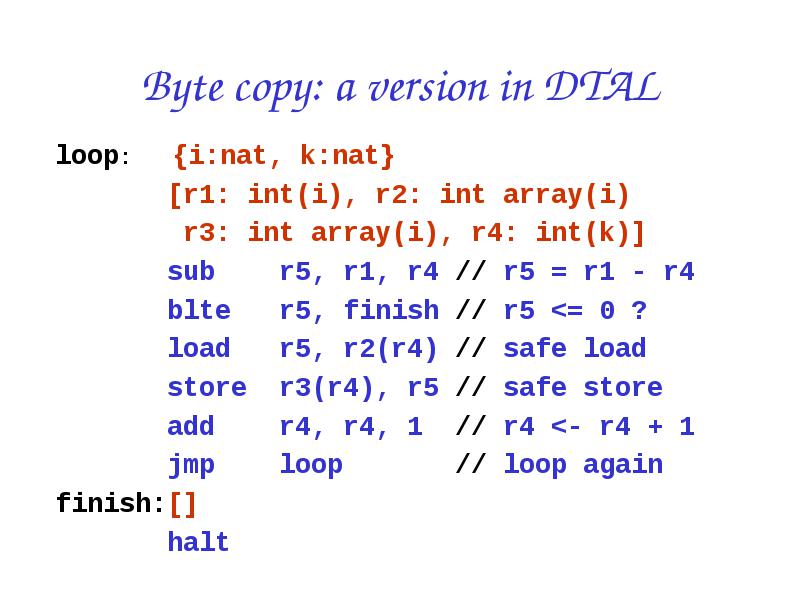

Byte copy: a version in DTAL

  • loop: {i:nat, k:nat}

  • [r1: int(i), r2: int array(i)

  • r3: int array(i), r4: int(k)]

  • sub r5, r1, r4 // r5 = r1 - r4

  • blte r5, finish // r5 <= 0 ?

  • load r5, r2(r4) // safe load

  • store r3(r4), r5 // safe store

  • add r4, r4, 1 // r4 <- r4 + 1

  • jmp loop // loop again

  • finish:[]

  • halt

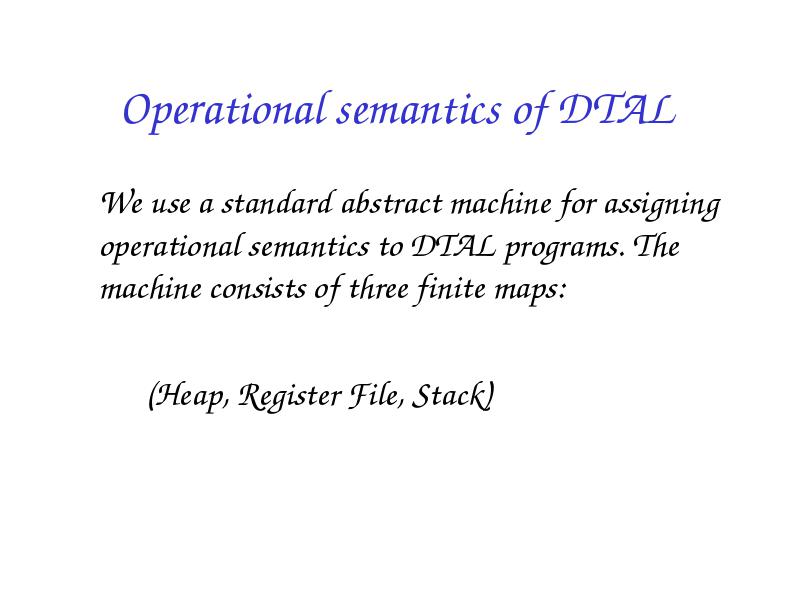

Operational semantics of DTAL

  • We use a standard abstract machine for assigning operational semantics to DTAL programs. The machine consists of three finite maps:

  • (Heap, Register File, Stack)



Soundness

  • The execution of a DTAL program can either

    • terminate normally, or
    • run forever, or
    • stall.
  • A well-typed DTAL program can never stall.

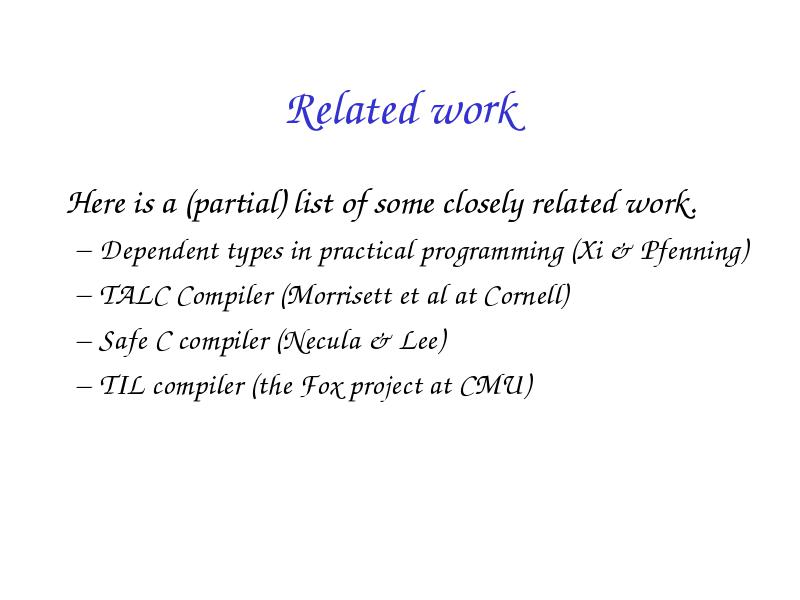

Related work

  • Here is a (partial) list of some closely related work.

    • Dependent types in practical programming (Xi & Pfenning)
    • TALC Compiler (Morrisett et al at Cornell)
    • Safe C compiler (Necula & Lee)
    • TIL compiler (the Fox project at CMU)

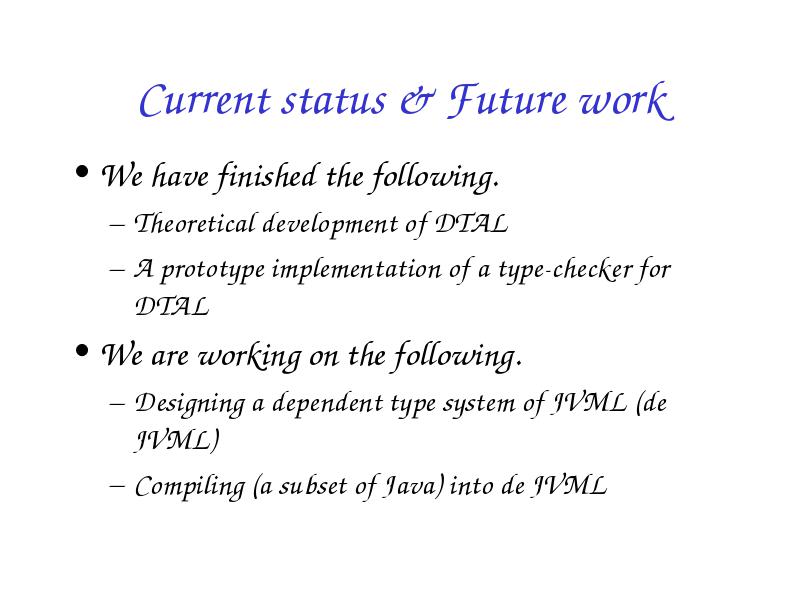

Current status & Future work

  • We have finished the following.

    • Theoretical development of DTAL
    • A prototype implementation of a type-checker for DTAL
  • We are working on the following.

    • Designing a dependent type system of JVML (de JVML)
    • Compiling (a subset of Java) into de JVML

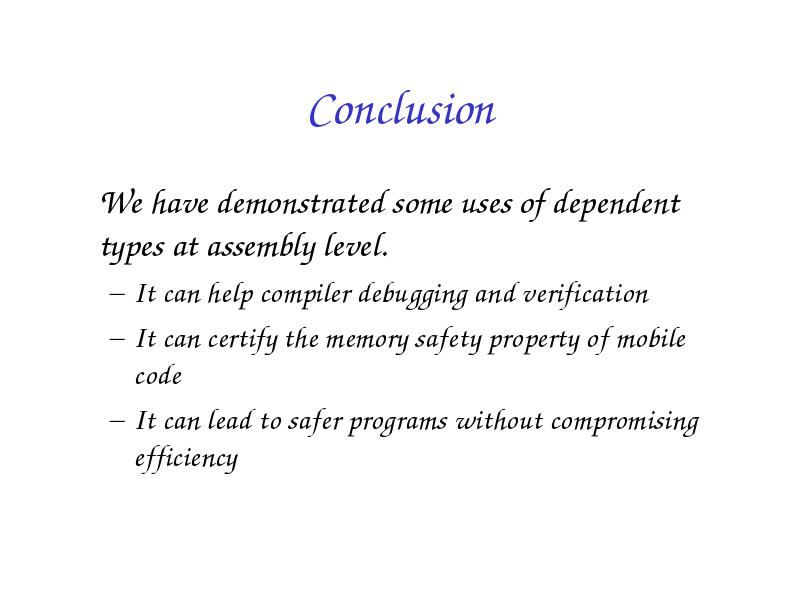

Conclusion

  • We have demonstrated some uses of dependent types at assembly level.

    • It can help compiler debugging and verification
    • It can certify the memory safety property of mobile code
    • It can lead to safer programs without compromising efficiency
